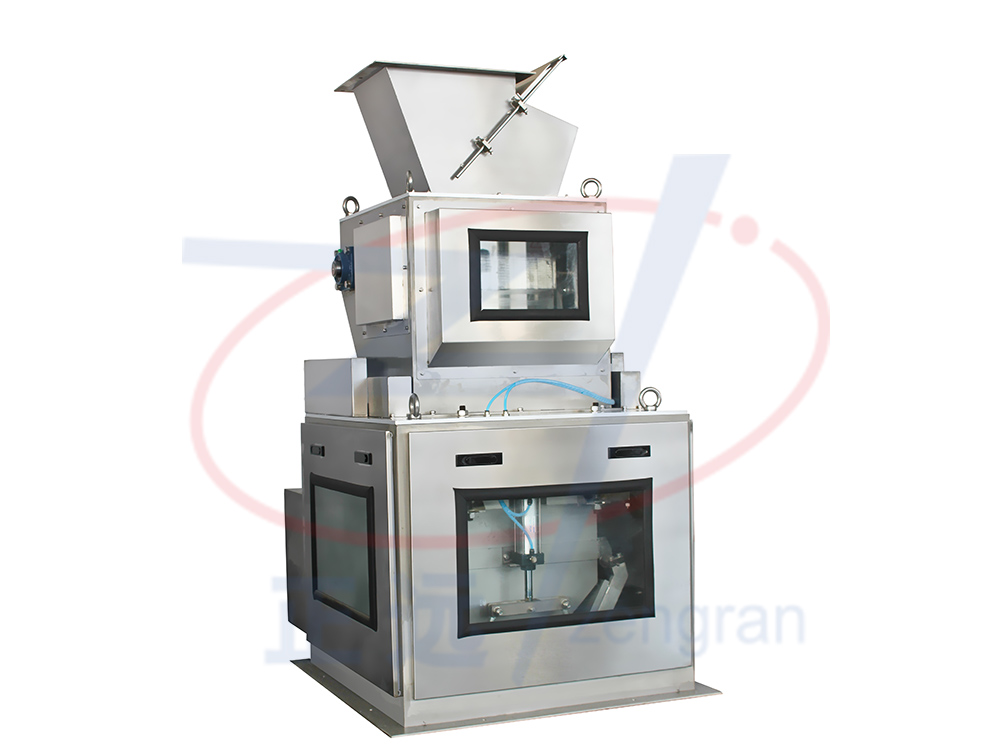

Servo weigher

Servo weigher

Zengran servo weigher is one of linear weigher, this weigher mainly used for agricultural products, food, chemical industry such as corn seed, granular fertilizer and other materials with good fluidity, can complete automatic metering, automatic filling and other work. Not suitable for semi-automatic, matching heavy bag automatic packaging.

Products Details

Features:

Single station independent weighing system, using servo motor arc gate control, rapid weighing, high accuracy.

l  High-resolution three-point hanging sensor, high sensitivity, more stable weighing.

l  Touch screen operation interface in Chinese and English, the parameter setting is clear at a glance and the operation is more humanized. A variety of different product parameters can be set to achieve the selection of different products and measurement values.

l  With linkage interface, it can realize linkage work with other packaging equipment.

Technical parameter:

l  Metering range:    5kg-50kg (according to the customer's specific gravity of the material)

l  Accuracy level       X class (0.2%)

l  Working air pressure   0.5~0.8MPa

l  Weighing hopper volume:   70L

l  Metering speed:    6-15 times / min.

l  Power supply:        220V 50HZ 0.8KW

l  Dimensions   812X812X1594mm

l  Silos volume  Matching customer's storage silo
