Open Mouth Bagging Machine
Home

Open Mouth Bagging Machine

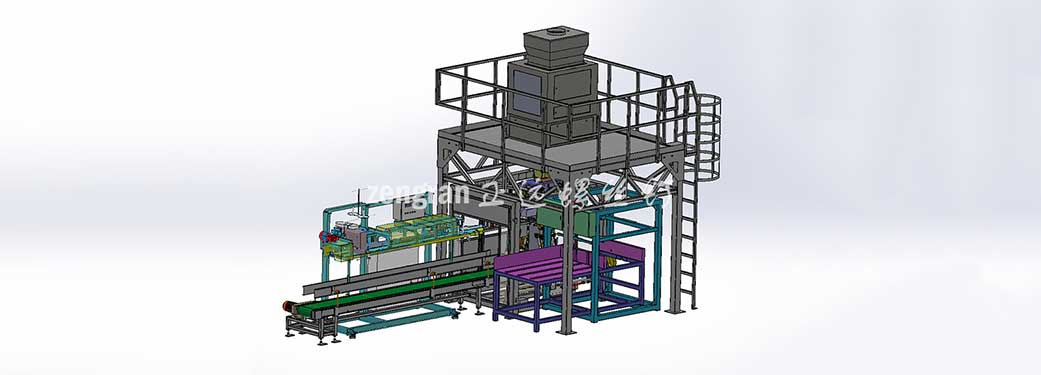

Automatic open mouth bag filler for granular materials

Automatic open mouth bag filler for granular materials

GFCK-G1 is Zengran's fully automatic bagging system, particularly for the automatic packaging of granular materials with good fluidity, designed specifically to fill and close medium open-mouth and gusseted bags, and its compact size means that the machine can be installed in any existing production area.

  • Max speed:

    500-650 Bags/H
  • Bag size:

    L(630-930mm)*W(350-450)
Products Details

Features

1. Weighing, bagging, bagging, feeding, sewing and other processes are fully automated.

2. Adapt to a variety of specifications of woven bags, and can realize one key intelligent switch, fast and convenient.

3. Using touch screen and PLC control, easy and convenient operation.

4. Servo motor drive is used in many places, which is safe and reliable, fast and stable.

5. With automatic fault alarm function, according to the fault prompt can be quickly checked.

6. Optional remote diagnosis function, easy to maintain.

Technical data

Model

GFCK-G1

Applicable materials

granulargood liquidity)

Weighing range

5 to 25kg (11b to 55lb)

Bag Matirical

Woven bag, kraft paper bag, PE bag

Bag Type

One line pocket, M side pocket

Speed

500-650 bags/hour

Ambient temp

-10°C to +45°C

Electrical

380V/50Hz, 3phase or customized per specification

Power

10KW

Air Pressure & Consumption

0.7Mpa, 0.6 M3min

Bag size(mm)

L630-930 x W350-450mm

Packing weight(kg)

10-25kg/bag

Application

Granule: grain, granular drug, capsule, seed, fertilizer, condiments, granulated sugar, chicken essence, melon seeds, nuts etc.


Bag Type
