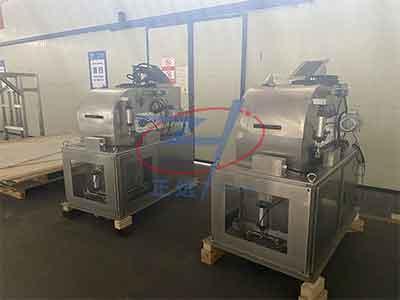

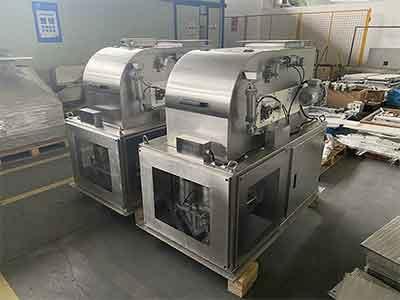

Belt Feed Weigher

Belt Feed Weigher

With the belt-feed weighers, the weighing container is filled by conveying the product using a belt conveyor. The belt-feed system is ideal for medium-flowing floury products, pellets, granules and flakes.

Products Details

Features

Single station independent weighing system, using servo motor arc gate control, rapid weighing, high accuracy.

l  High-resolution three-point hanging sensor, high sensitivity, more stable weighing.

l  Touch screen operation interface in Chinese and English, the parameter setting is clear at a glance and the operation is more humanized. A variety of different product parameters can be set to achieve the selection of different products and measurement values.

l  With linkage interface, it can realize linkage work with other packaging equipment.



Technical parameter

Metering range:

5kg-50kg (according to the customer's specific gravity of the material)

Accuracy level

X class (0.2%)

Working air pressure

0.5~0.8MPa

Weighing hopper volume

70L/140L

Metering speed

6-15 times / min.

Power supply:

220V 50HZ 0.8KW/1.6KW
