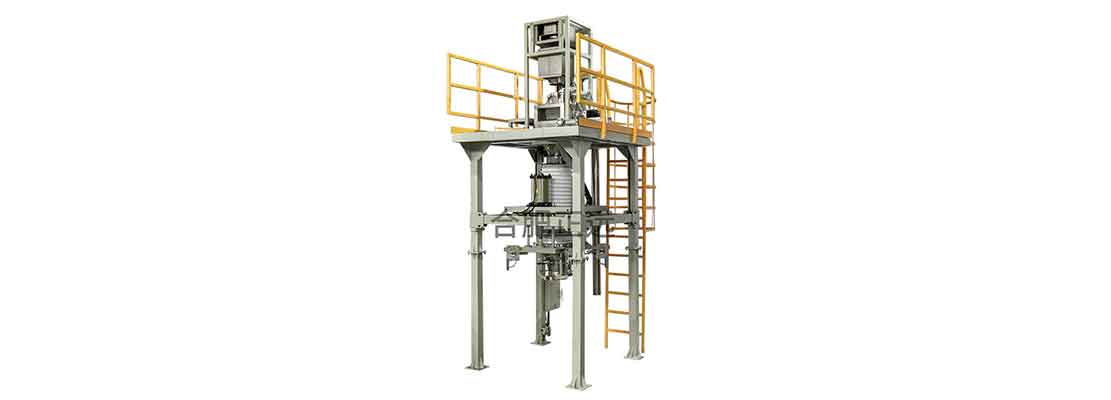

CJD1000K automatic quantitative packaging machine is designed for centralized ton-bag packaging of powdery and granular materials with relative good flowability, it adopts rotary valve feeding, gross weight metering, can realize such functions as manual bagging, hanging tape suspension, automatic bag clamping, automatic material feeding, automatic weighing, automatic bag release, heavy bag conveying, etc. It features compact structure, simple and convenient operation, convenient handling, and high reliability.
Max speed:
4-6 tons/HBag size:
Ton bags|
Features: n The weighing system of CJD1000K quantification Ton packaging machinery contains high accuracy(0.02%) sensor and high resolution controller, to keep the machine with high accuracy and stable performance. n The material feeding parts adopt two kinds(big one and small one) valves to control the three kinds feeding: fast, slow and exactness. n The packing range is 500-2000kg adjustable. It suitable to big bags packing. n The parameter setting and the weighing calibration is very simple and with convenient operation. |
|
Technical data:: n Material range: 500-1200kg n Packing speed: feeding ON to OFF, 4-6 tons/H n Accuracy: static accuracy 0.1%FA.OIMLⅢ grade, dynamic accuracy 0.3% n Power supply: AC380V/220V n Power: 2.5Kw |
If you have questions or suggestions,please leave us a message,we will reply you will reply you in 24 hours
