Secondary Packaging Machine Unit For Food and Chemicals

Secondary Packaging Machine Unit For Food and Chemicals

Secondary Packaging Units Are Commonly Used In The Food Industry (e.g. Salt, flour, Animal Feed) And The Chemical Industry (Cement, Chemical Raw Materials), Etc. Automated mechanical operation saves manpower and guarantees the hygiene and safety of food. We Have Provided Technical Support And Service Solutions For Many Food and Chemicals Leading Companies At Home And Abroad

  • Max speed:

    90 times/min
  • Bag size:

    Bag Width Between 350-450mm
Products Details

Features

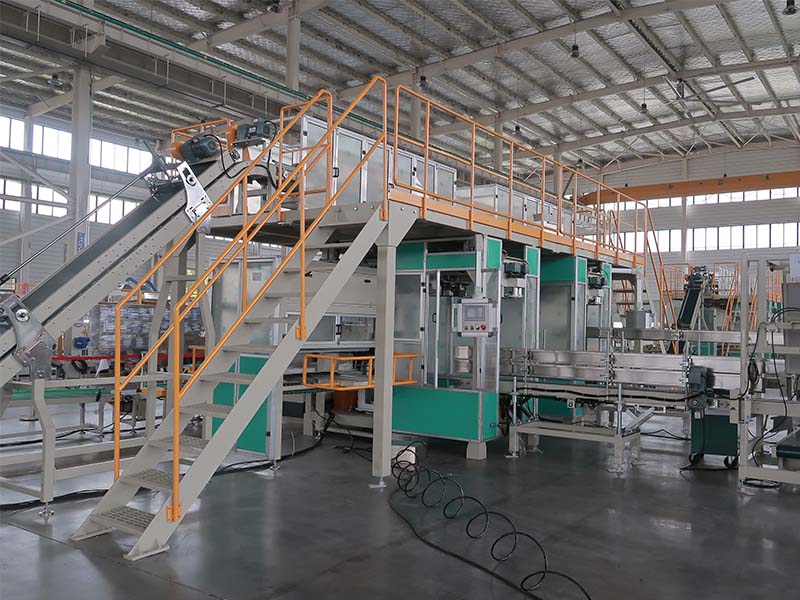

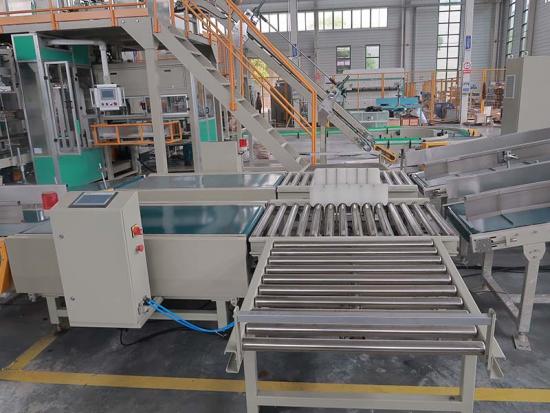

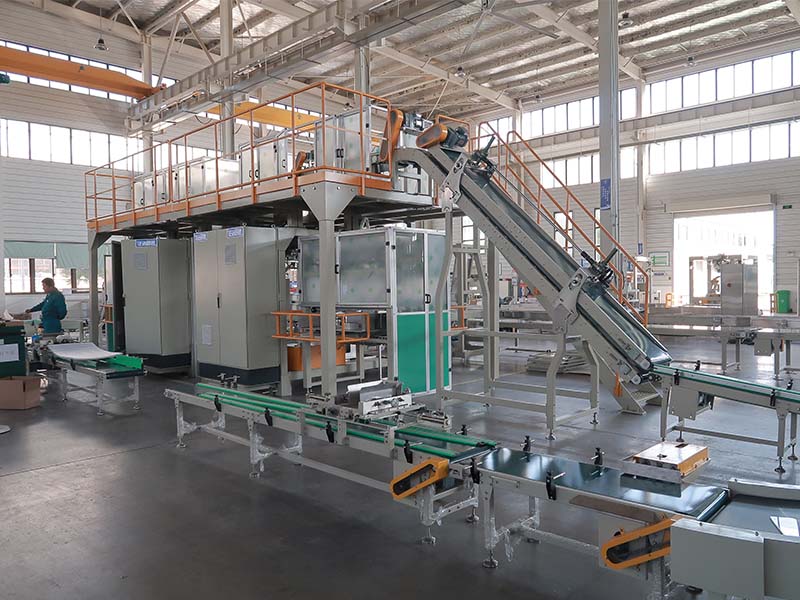

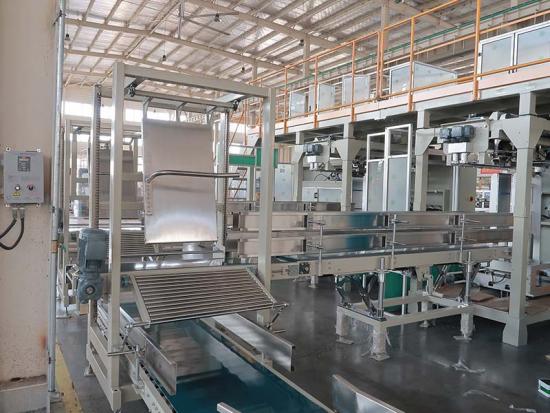

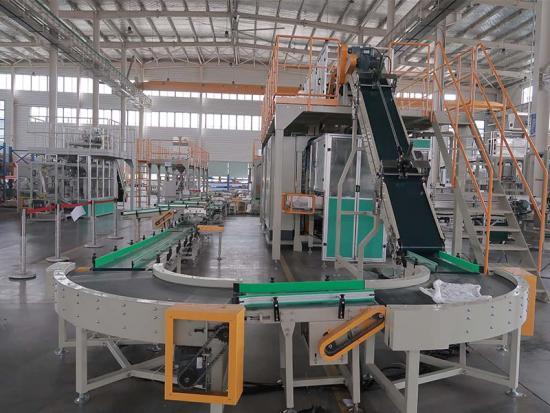

1. This Packing Unit Includes One Set Of Horizontal Connecting Conveyor, One Set Of Climbing Conveyor, One Set Of Standard Stations Secondary Packing Machine And One Set Of Take-Off Conveyor.

2. This Machine Integrates The Functions Of Bags Feeding, Conveying, Bags Filling, Sewing, Cutting, Etc.

3. The Machine Has Good Sealing Performance And Can Meet Customer’s Hygienic Requirements.

4. All The Electrical Components And Control Components Adopt Local And Foreign Well-Known Brands With Reliable Performance, Such As Siemens Plc And Touch Screen, Delta Servo Motor, Schneider Electrical Components, Smc Pneumatic Components, Etc.

Secondary Packaging Working Process:

Technical Date Of Standard Secondary Packaging Machine

1)   Packing Products: Plastic Bag With Material, Dimension 225mmx140mm

2)   Packaging Weight: According To Customer’S Requirement

3)   Max.Speed:    90 Times/Min

4)   Filling Order: According To Customer’S Requirement

5)   Power Supply: 380v±10%  50hz   10kw

6)   Machine Weight:   5000kg

7)   Machine Size: 6000*2000*4900mm

8)   Air Supply Source: 0.6mpa, 0.5m3/Min

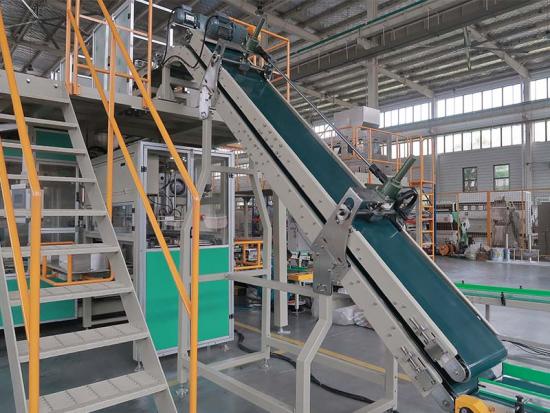

Climbing Conveyor

1)   Machine frame:    304 stainless steel, painted steel

2)   Belt character:      PU belt

3)   Machine height:    3520mm, or customized.

4)   Voltage:   Three phase AC220v, 50HZ,60HZ

5)   Power Supply: 1.5 KW

6)   Weight:    600KG

7)   Packing size:   6090mm(L)*660mm(W)*650(H)


4. Automatic Stitching /sewing machine

1)       Model:  GK35-2C

2)       Sewing speed:     2000r.p.m.

3)       Maximum sewing thickness:   8mm

4)       Stitch adjustment range:  6.5~11mm

5)       Stitch pattern:    Two-wire chain 401

6)       Sew specifications     Cotton thread, polyester thread lifting height of presser foot 11~16mm

7)       Needle model:    80800x250#pulley diameter 114mm

8)       Wire braid cutter device mechanical motor power:  370w

9)       Machine weight: 30kg

10)   Dimension(mm) :       50(L)*50(W)*1500(H)

Targeted Pouch Type and The Finished Product Bag
