VFFS Bagging Machine
Home

VFFS Bagging Machine

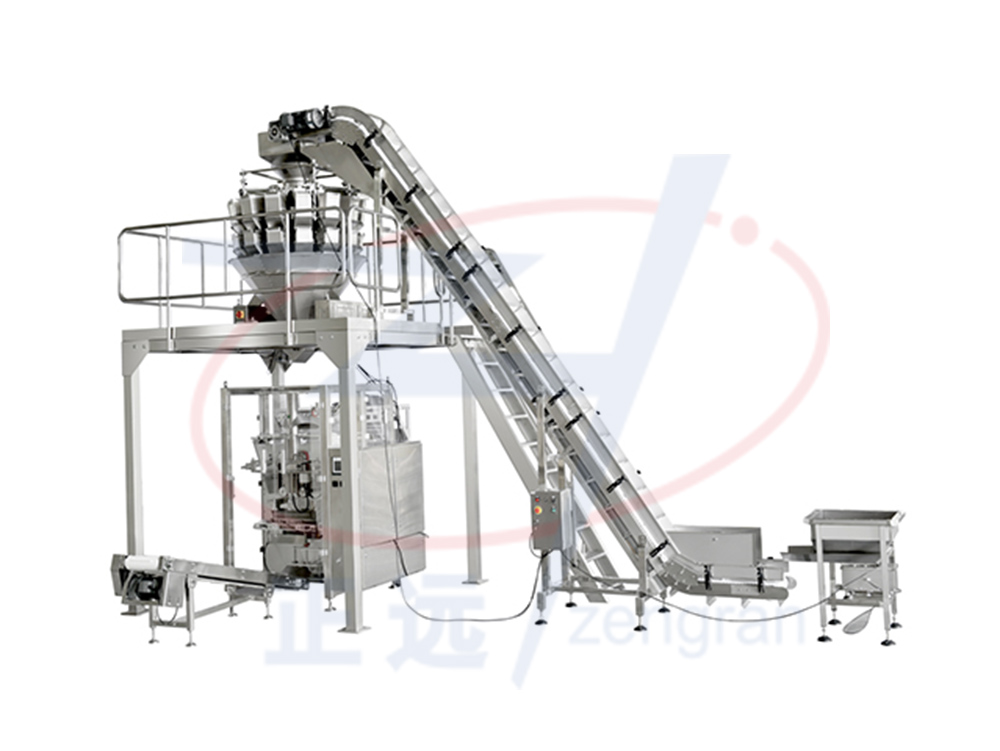

Automatic Packaging Machine with Multihead weigher

Automatic Packaging Machine with Multihead weigher

The system is designed to pack organic food products into a most classic pillow bag, suitable for automatically packaging of fresh fruit and vegetables like leafy salad, greens, chopped salad kits as well as frozen food like fish ball, chicken wings, chicken feet, shrimps, etc.

  • Item NO.:

    VFS7300B
  • Max speed:

    10-60bags/min
  • Bag size:

    Max: L*W=(80-460mm)*(50-350)mm
Products Details


Features:

1. Imported PLC and HMI control system, full Chinese/English touch screen operating system, clear display of the working status and instructions.

2. High precision servo film pulling system, smooth movement of film, with eyemark sensor as well as encoder automatic positioning and tracking system, accurate cutting of bag length.

3. Intelligent digital temperature control system, temperature controlled stably, with teeth-shaped sealer ensure the sealing integrity.

4. Automatic fault alarm display function, machine will automatically alarm or shutdown when sealing temperature drop, film run out, no ribbon, no material, servo failure, no film tracking signal, protection door opened, etc. To help solving problems immediately

5. Integrated functions of all packaging process including automatically code printing, weighing, filling, bagging, cutting and counting.

The complete system include:

n  Inclined belt conveyor

n  Multihead combination weighing scale

n  Supporting platform

n  VFFS series vertical form fill seal machine

n  Output conveyor



Options

n  Nitrogen gas flushing

n  Air deflation/exhausting before sealing

n  Check weigher

n  Metal detector

n  Rotary table


Technical parameter:

Model

VFS5000B

VFS7300B

Bag size

(L)100-350mm

(W)100-250mm

(L)100-460mm

(W)100-350mm

Film width

Max.520mm

Max.730mm

Film thickness

0.04-0.1mm

0.04-0.14mm

Packing speed

20-60bags/min

10-50bags/min

Air consumption

0.65Mpa, 0.4/min

0.65Mpa, 0.6/min

Power supply

380V,50-60Hz

380V,50-60Hz

Power

5.5Kw

6Kw

Dimension

L1200xW1580xH1650mm

L1400xW1780xH1920mm

Machine weight

650Kg

850Kg


A free consultation
