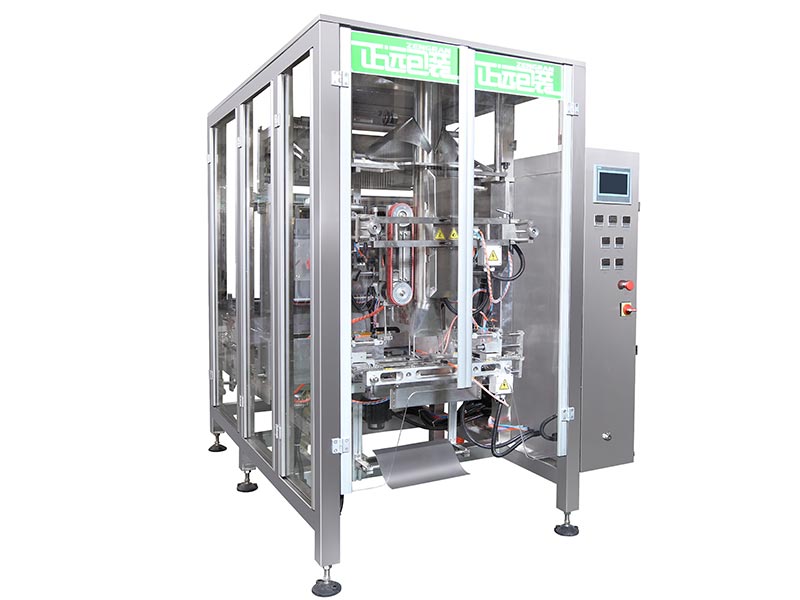

Quad Seal VFFS Bagging Machine

Quad Seal VFFS Bagging Machine

Quad seal bag is a versatile attention-grabbing design that is very popular in the packaging industry, most notably in coffee packaging. This bag holds its shape well on the shelf and can support heavier fills of products. With the addition of a degassing valve, it becomes the perfect solution for fresh roasted coffee.

  • Item NO.:

    VFS5000A5
  • Max speed:

    8~45bags/min
  • Bag size:

    (FW)100-245mm (SW)60-120mm (Edge seal)5-10mm (L)100-420mm
Products Details

Features:

n  excellent shelf appeal

n  Sturdy, crisp, and modular

n  Premium, specialty look


Optional dosing system:

l  multihead scale

l  Auger filler

l  linear scale

l  Volumetric cup filler



Optional auxiliary equipment:

n  Air-vent valve

n  Labeling machine

n  Check weigher

n  Metal detector

n  Rotary table


Technical parameter:

Model

VFS5000A5

VFS7300A5

Bag size

(FW)70-180mm

(SW)50-100mm

(Edge seal)5-10mm

(L)100-350mm

(FW)100-245mm

(SW)60-120mm

(Edge seal)5-10mm

(L)100-420mm

Film width

Max.520mm

Max.730mm

Film thickness

0.04-0.1mm

0.04-0.14mm

Film material

Laminated film

Laminated film

Packing speed

10-50bags/min

10-40bags/min

Air consumption

0.65Mpa, 0.4/min

0.65Mpa, 0.6/min

Power supply

380V,50-60Hz

380V,50-60Hz

Power

5.5Kw

6Kw

Dimension

L1400xW1700xH1900mm

L1500xW1750xH2000mm

Machine weight

750Kg

950Kg
