Hefei Zengran Intelligent Packaging Technology Co., Ltd

VFFS Bagging Machine
Home

VFFS Bagging Machine

VFFS Bagging Machine with cup filler

VFFS Bagging Machine with cup filler

VFFS5000DS packing machine, is a model specially designed for salt, with high progress and stable speed by measuring cup. At present, it has served all the famous food companies in China include China National Salt Industry Corporation

  • Item NO.:

    VFS5000DS
  • Max speed:

    30~70bags/min
  • Bag size:

    (L*W)=(50-280mm)*(80-180mm)
Products Details

The complete system include:

l  Screw elevator

l  Volumetric cup filler

l  VFFS bagging machine

l  Output conveyor



Options

n  Check weigher

n  Metal detector

n  Rotary table


Features:

n  Adjustable capacity from 50-250ml; 250-500ml, 500-1000ml is optional

n  Imported PLC and HMI control system, full Chinese/English touch screen operating system, clear display of the working status and instructions.

n  High precision servo film pulling system, smooth movement of film, with eyemark sensor as well as encoder automatic positioning and tracking system, accurate cutting of bag length.

n  Intelligent digital temperature control system, temperature controlled stably, with teeth-shaped sealer ensure the sealing integrity.

n  Automatic fault alarm display function, machine will automatically alarm or shutdown when sealing temperature drop, film run out, no ribbon, no material, servo failure, no film tracking signal, protection door opened, etc. To help solving problems immediately


Technical parameter:

Model

VFS5000DS

VFS5000DSS

Bag size

(L)80-300mm

(W)80-200mm

(L)80-300mm

(W)80-200mm

Suitable target weight

50-250ml; 250-500ml, 500-1000ml by changing cups

50-250ml; 250-500ml, 500-1000ml by changing cups

Accuracy

Less than 100 gram: ≤+/-0.5-1gram
More than 100 gram: ≤+/-0.5-1%

Less than 100 gram: ≤+/-0.5-1gram
More than 100 gram: ≤+/-0.5-1%

Film width

Max.420mm

Max.420mm

Film thickness

0.04-0.1mm

0.04-0.1mm

Packing speed

Max 60bags/min

Max 1200bags/min

Air consumption

0.65Mpa, 0.4/min

0.65Mpa, 0.4/min

Power supply

380V,50-60Hz

380V,50-60Hz

Power

3Kw

6Kw

Dimension

L1140xW1250xH1550mm

L2000xW1250xH1550mm

Machine weight

450Kg

900Kg

A free consultation

If you have questions or suggestions,please leave us a message,we will reply you will reply you in 24 hours

  • #
  • #
  • #
  • If you are interested in our products and want to know more details,please leave a message here,we will reply you will reply you in 24 hours.

Related products
powder bagging machine

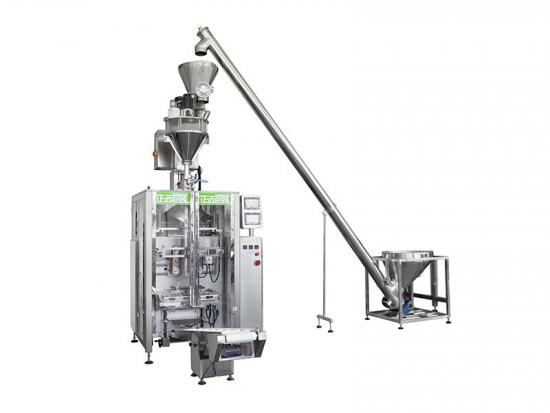

VFFS Bagging Machine with Auger Filler
